On a: DFJ、DRJ series

Back

Next: DFJ04/04A Series

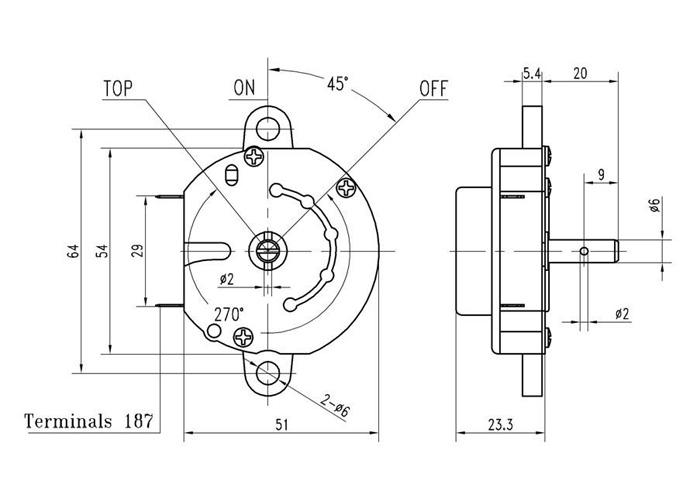

DFJ02/02A Series

Specification：        Model DFJ 02 Series DFJ 02A Series    Rated AC125/250V 5/2.5A AC125/250V 20/10A    Terminals type 187（4.75x0.5） 250（6.35x0.8）    Operating temperature -10℃~+55℃ -10℃~+55℃    Setting direction Clockwise Clockwise    Force moment of operation ≤0.5N.m ≤0.5N.m    Insulation resistance ≥100MΩ ≥100MΩ    Insulation strength 2900V/1min. 2900V/1min.    Class of waterproof IP00 IP00    Setting time range 0 ~ 180 min./270° 0 ~ 180 min./270°    Service life ≥10000 times ≥10000 times Applications: can be used for other beauty equipment, humidifiers, electric fireplace, medical equipment and other
