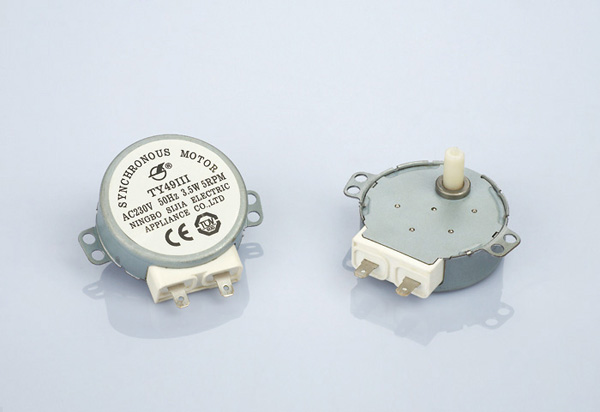

TY49 ¢ó


 Specification£º


   Model TY49 III
   Power frequency 50Hz/60Hz
  Operating voltage 110V~120V 220V~240V
   Operating temperature -10¡æ~+55¡æ -10¡æ~+125¡æ
  Input power ¡Ü4W
Output speed 2.5~10RPM
Output torque 350mN.m(At 5RPM20¡æ£©
Insulation resistance ¡Ý100M¦¸
Insulation strength 1500V/1min.
Insulation class E/H
Temperature rise ¡Ü60K
Rotation CW/CCW
Applications: can be used in heating, electric fireplace, electric fans, cooling fans, ovens, humidifiers, medical instruments, valves, water dispensers, etc.
